Cisco C40

The Cisco C40 is a light integration codec that provides excellent function for medium sized conference rooms.

The C40 is suitable for use in equipment racks that require an element of audiovisual integration. With 5 audio inputs and 3 audio outputs, this system can accommodate two XLR microphones and other audio input (such as from a mixer, a PC or a telephone hybrid). In addition to its audio inputs and outputs, the C40 also includes 4 distinct video inputs and 2 outputs [Inputs include a mix of HDMI, DVI-I, Composite / Outputs include a mix of HDMI, DVI-I]. This codec is made to provide solid function and a light level of integration support.

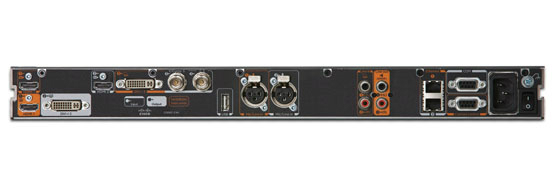

cisco c40 thumbnail
See larger image

Key Differentiators of the C40:

  • Designed for light integration into medium-sized conference rooms
  • Economical design and feature set enable widespread use
  • Optimal definition up to 1080p interactive video conferencing
  • Form factor is a 1RU design for compact rack mounting
  • Includes 5 Audio Inputs and 3 Audio Outputs
  • Includes 4 Video Inputs and 2 Video Outputs
  • Includes H.460 Firewall traversal technology
  • Optional 4 way 576p30 Multisite capability
  • Up to 10Mbps Multisite bandwidth capacity
  • Dual Stream video H.239 capability
  • Optional two monitor support

Please contact our sales team for information on Cisco C40 or other video conferencing products at 1.800.216.3476 or email sales@tkoworks.com


Design features
  • The next-generation HD video collaboration codec for every team room
  • 1 rack unit (1RU) high, rack-mountable, with rack-mounting solution included
  • Professional-grade connectors
  • Unmatched quality and flexibility
  • Standards-compliant 1080p solution - compatible with standards-based video without losing features
Application features
  • Individual transcoding embedded MultiSite**
  • HD collaboration with resolutions up to WXGA at full frame rate
  • One button to push (OBTP) to start a meeting
  • Ideal for team-based collaboration and industry applications
Performance features
  • Optimal definition up to 1080p
  • H.323/SIP up to 6 Mbps point-to-point
  • Ability to connect up to three HD sources and two microphones directly into the interface
  • Full-duplex audio with high-quality stereo sound
  • Full application programming interfaces (APIs)
  • Ability to take advantage of Cisco® Total Solution Management, transcoded HD multipoint control
    • unit (MCU), recording and streaming, Multiway, and firewall traversal
  • Cisco TelePresence ClearPath packet loss protection technology for optimal experience
  • Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager Version 8.6 or higher)
  • Can be supported on the Cisco WebEx Telepresence network
Unit delivered complete With
  • Videoconferencing codec, wireless remote control, rack-mounting ears, LAN cable, and power cable
Bandwidth
  • H.323/SIP up to 6 Mbps point-to-point
Firewall traversal
  • Cisco Expressway technology
  • H.460.18 and H.460.19 Firewall Traversal
Video standards
  • H.261, H.263, H.263+, and H.264
Video features
  • Native 16:9 widescreen
  • Advanced screen layouts
  • Intelligent video management
  • Local auto layout
Video inputs (four inputs)
    Two HDMI Inputs; Supported Formats:
  • 1920 x 1080@60 and 59.94 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1920 x 1080@30 and 29.97 Hz (1080p30)
  • 1920 x 1080@25 Hz (1080p25)
  • 1920 x 1080@24 and 23.97 Hz (1080p24)
  • 1280 x 720@60 and 59.94 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 720 x 480@60 and 59.94 Hz (480p60)
  • 640 x 480@60 Hz (480p60)
  • 1600 x 1200@50 and 60 Hz (UXGA)
  • 1280 x 1024@60 and 75 Hz (SXGA)
  • 1024 x 768@60, 70, 75, and 85 Hz (XGA)
  • 800 x 600@56, 60, 72, 75, and 85 Hz (SVGA)
  • 1920 x 1200@50 and 60 Hz (WUXGA)
  • 1680 x 1050@60 Hz (WSXGA+)
  • 1440 X 900@60 Hz (WXGA+)
  • 1280 x 768@60 Hz (WXGA)
    • One DVI-I Input; Supported Formats: Analog (VGA):
  • 1920 x 1080@60 Hz (1080p)
  • 1280 x 720@60 Hz (720p)
  • 1600 x 1200@60 Hz (UXGA)
  • 1280 x 1024@60 and 75 Hz (SXGA)
  • 1280 x 960@60 Hz
  • 1024 x 768@60, 70, 75, and 85 Hz (XGA)
  • 1920 x 1200@50 Hz (WUXGA)
  • 1680 x 1050@60 Hz (WSXGA+)
  • 1440 x 900@60 Hz (WXGA+)
  • 1280 x 800@60 Hz (WXGA)
  • 1280 x 768@60 Hz (WXGA)
    • Analog (YPbPr):
  • 1920 x 1080@60 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1920 x 1080@30 Hz (1080p30)
  • 1920 x 1080@25 Hz (1080p25)
  • 1280 x 720@60 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 1280 x 720@30 Hz (720p30)
  • 720 x 576@50 Hz (576p50)
  • 720 x 480@60 Hz (w480p60)
    • Digital (DVI-D):
  • Same as HDMI; reference earlier in the table
    • One S-Video/Composite Input (BNC Connectors):
  • PAL/NTSC
  • Extended Display Identification Data (EDID)
Video outputs (two outputs)
    One HDMI Output and One DVI-I Output; Supported Formats:
  • 1920 x 1080@60 Hz (1080p60)
  • 1920 x 1080@50 Hz (1080p50)
  • 1280 x 720@60 Hz (720p60)
  • 1280 x 720@50 Hz (720p50)
  • 1600 x 1200@60 Hz (UXGA)
  • 1280 x 1024@60 Hz (SXGA)
  • 1024 x 768@60 Hz (XGA)
  • 800 x 600@60 Hz (SVGA)
  • 640 x 480@60 Hz (VGA)
  • 1920 x 1200@60Hz (WUXGA)
  • 1360 x 768@60 Hz
  • 1366 x 768@60 Hz
  • 1280 x 768@60 Hz (WXGA)
  • VESA Monitor Power Management
  • EDID
Live video resolutions (encode and decode)
  • 176 x 144@30 frames per second (fps) (QCIF)
  • 352 x 288@30 fps (CIF)
  • 512 x 288@30 fps (w288p)
  • 576 x 448@30 fps (448p)
  • 768 x 448@30 fps (w448p)
  • 704 x 576@30 fps (4CIF)
  • 1024 x 576@30 fps (w576p)
  • 1280 x 720@30 fps (720p30)
  • 1920 x 1080@30 fps (1080p30)**
  • 512 x 288@60 fps (w288p60)
  • 768 x 448@60 fps (w448p60)
  • 1024 x 576@60 fps (w576p60)
  • 1280 x 720@60 fps (720p60)**
  • 640 x 480@30 fps (VGA)
  • 800 x 600@30 fps (SVGA)
  • 1024 x 768@30 fps (XGA)
  • 1280 x 768@30 fps (WXGA)
  • 720p30 from 768 kbps
  • 720p60 from 1152 kbps
  • 1080p30 from 1472 kpbs
Audio standards
  • G.711, G.722, G.722.1, 64-bit kbps, and 128-bit kbps MPEG4
  • AAC-LD and AAC-LD Stereo
Audio features
  • CD-quality 20-kHz mono and stereo
  • Two separate acoustic echo cancellers
  • 2-port audio mixer
  • Automatic Gain Control (AGC)
  • Automatic noise reduction
  • Active lip synchronization
Audio inputs (five inputs)
  • Two microphones, 48V phantom powered, XLR connector, each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level
  • Two RCA/Phono inputs, line level: Stereo PC input, configurable to two RCA/Phono inputs, line level: Mono auxiliary/DVD input
  • One HDMI, digital: Stereo PC/DVD inputs
Audio outputs (three outputs)
  • Two RCA/Phono inputs, line level, stereo main audio, configurable to S/PDIF or two RCA/Phono inputs, line level, mono to recording device
  • One HDMI, digital, stereo main audio
Dual stream
  • H.239 (H.323) dual stream
  • BFCP (SIP) dual stream
  • Support for resolutions up to WXGAp30, independent of the main stream resolution
MultiPoint support
  • Four-way embedded SIP/H.323 MultiPoint, reference MultiSite
  • Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS] and Cisco TelePresence MCU)
  • Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS)
MultiSite features (embedded MultiPoint)
  • Four-way SIP/H.323 MultiSite; resolution up to w576p30
  • Full individual audio and video transcoding
  • Individual layouts in multisite continuous presence (takes out self view)
  • H.323, SIP, and voice over IP (VoIP) in the same conference
  • Support for Presentation (H.239/BFCP) from any participant at resolutions up to WXGAp30
  • Best Impression (automatic continuous presence layouts)
  • H.264, encryption, and dual stream from any site
  • Dial in and dial out
  • Additional telephone call (no license required)
  • Conference rates up to 10 Mbps
Protocols
  • H.323
  • SIP
Embedded encryption
  • H.323/SIP point-to-point
  • Standards-based: H.235v3 and Advanced Encryption Standard (AES)
  • Automatic key generation and exchange
  • Supported in Dual Stream
IP network features
  • DNS lookup for service configuration
  • Differentiated Services (quality of service [QoS])
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lip-sync buffering
  • H.245 DTMF tones in H.323
  • Date and time support through Network Time Protocol (NTP)
  • Packet loss-based downspeeding
  • URI dialing
  • TCP/IP
  • Dynamic Host Configuration Protocol (DHCP)
  • 802.1x Network Authentication
  • 802.1Q Virtual LAN
  • 802.1p (QoS and class of service [CoS])
  • ClearPath
Cisco Unified Communications Manager (requires Cisco Unified Communications Manager Version 8.6 or later)
  • Native registration with Cisco Unified Communications Manager
  • Basic Cisco Unified Communications Manager provisioning
  • Firmware upgrade from Cisco Unified Communications Manager
  • Cisco Discovery Protocol and DHCP option 150 support
  • Basic telephony features such as hold, resume, transfer, and Corporate Directory lookup
IPv6 network support
  • Single call stack support for both H323 and SIP
  • Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ)
  • Support for both static and autoconfiguration (stateless address auto configuration)
Security features
  • Management through HTTPS and SSH
  • IP administration password
  • Menu administration password
  • Disable IP services
  • Network settings protection
Network interfaces
  • Two LAN/Ethernet (RJ-45) 10/100/1000 Mb
Other Interfaces
  • USB device for future usage
Cisco TelePresence PrecisionHD Camera (1080p)
  • 1/3-inch CMOS
  • 12x zoom and 4x zoom
  • +15°/-25° tilt, +/-90° pan
  • 43.5° vertical field of view
  • 72° horizontal field of view
  • Focus distance 0.3m-infinity
  • 1920 x 1080 pixels progressive @ 60 fps (12x version)
  • 1920 x 1080 pixels progressive @ 30 fps (4x version)
    • Other formats supported (configurable through dip-switch):
  • 1920 x 1080@60 fps (HDMI only)*
  • 1920 x 1080@50 fps (HDMI only)*
  • 1920 x 1080@30 fps
  • 1920 x 1080@25 fps
  • 1280 x 720@60 fps*
  • 1280 x 720@50 fps*
  • 1280 x 720@30 fps
  • 1280 x 720@25 fps
  • Automatic or manual focus, brightness, and white balance
  • Far-end camera control
  • Daisy-chain support (Visca protocol camera)*
  • Dual HDMI and HD-SDI outputs
  • Upside-down mounting with automatic flipping of picture
System management
  • Support for the Cisco TelePresence Management Suite (Cisco TMS)
  • Total management through embedded Simple Network Management Protocol (SNMP), Telnet, SSH, XML, and Simple Object Access Protocol (SOAP)
  • Remote software upload: Through web server, Secure Copy (SCP), HTTP, and HTTPS
  • One RS-232 for local control and diagnostics
  • Remote control and on-screen menu system
Directory services
  • Support for local directories (My Contacts)
  • Corporate Directory
  • Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
  • Unlimited number for Corporate Directory (through Cisco TelePresence Management Suite)
  • 200 number local directory
  • Received calls
  • Placed calls
  • Missed calls with date and time
Power
  • Auto-sensing power supply
  • 100-240 VAC, 50-60 Hz
  • 175 watts maximum for codec and main camera
Operating temperature and humidity
  • 32 to 95°F (0 to 35°C) ambient temperature
  • 10 to 90% relative humidity (RH)
Storage and transport temperature
  • -4 to 140°F (-20 to 60°C) at RH 10-90% (noncondensing )
Dimensions
  • Length: 17.4 in. (44.2 cm)
  • Height: 1.7 in. (4.4 cm)
  • Depth: 10.9 in. (27.8 cm)
  • Weight: 8.8 lb (4 kg)
* Not supported on 4x zoom camera
** Requires option
Cisco TelePresence System Codec C40 with NPP,
remote control, 1 Mic, Cables++
Product #: CTS-INTP-C40-K9
List Price: $18,070
TKO Price: $13,900
1 Year Maintenance Support for Codec C40 with NPP,
remote control, 1 Mic, Cables++ (Required)
Product #: CON-PZDN-INTPC40
TKO Price: $1,715.97
